The land on which the basement & new house was to be built has a very high water table and the ground conditions meant it would retain water very well.

For these reasons the client and their team wanted a cellar building specialist to design and carry out the works.

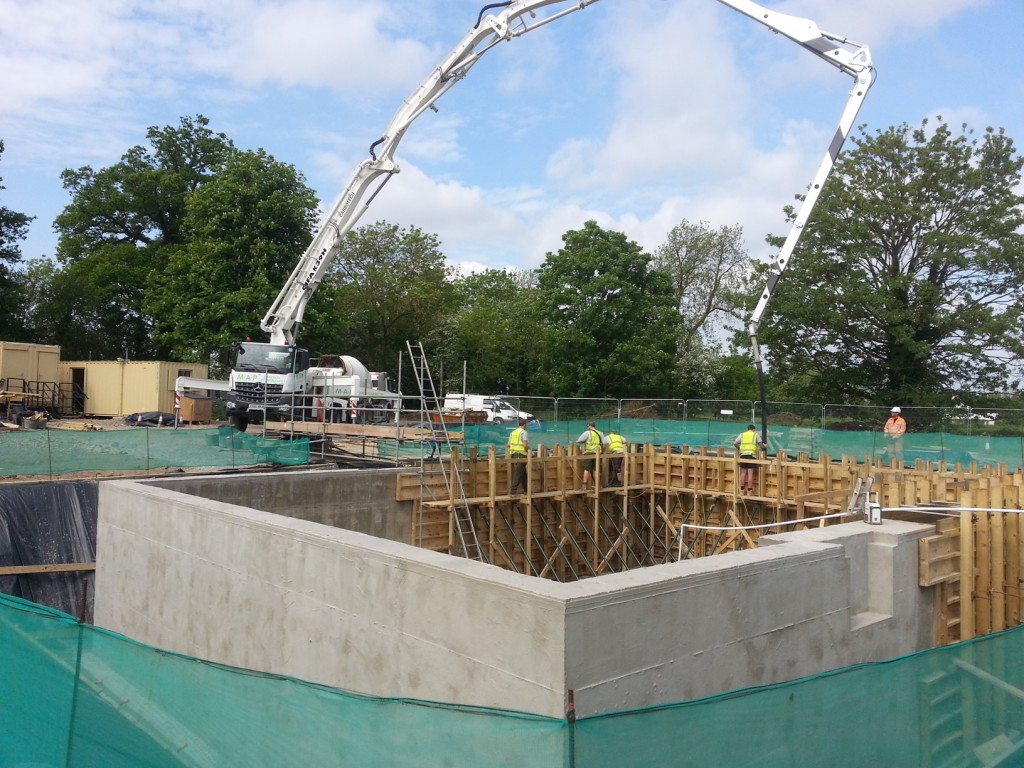

Large concrete pumps used to pour wall concreteWalls built in two halvesMain slab set out, shutterd, reinforced with steel and cast in concrete

Build Method

Once complete, the excavation was lined with membranes to keep banks from spalling and collapsing in on the crew below.

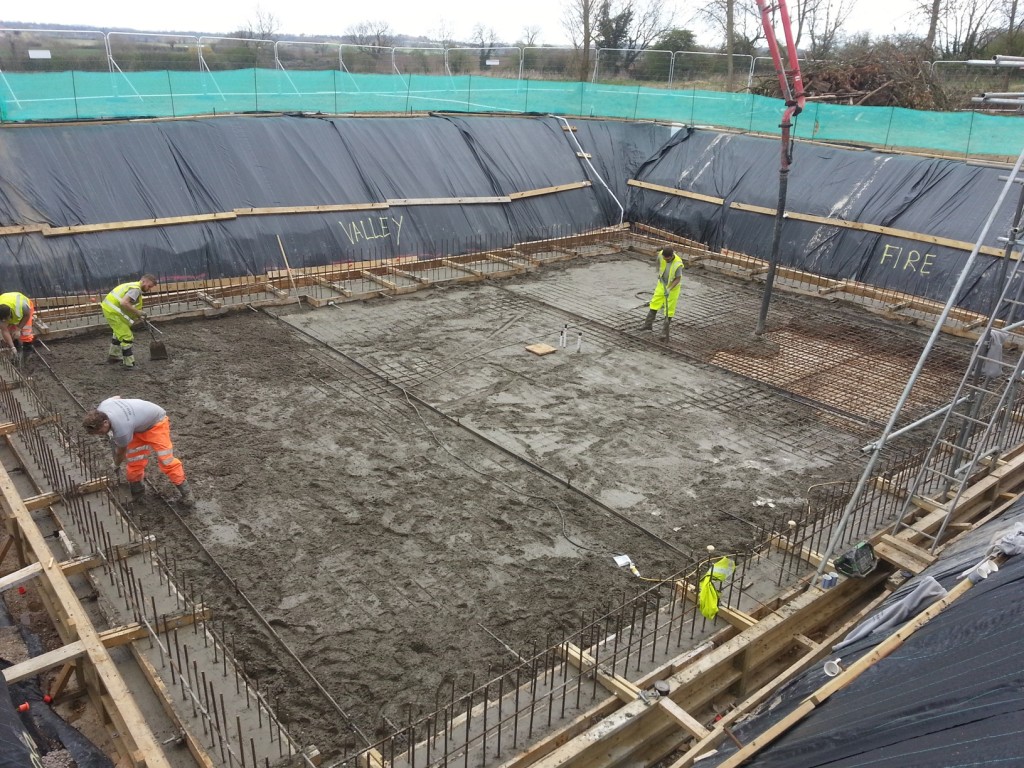

The slab was shuttered, reinforced and then cast using concrete with waterproof additives in.

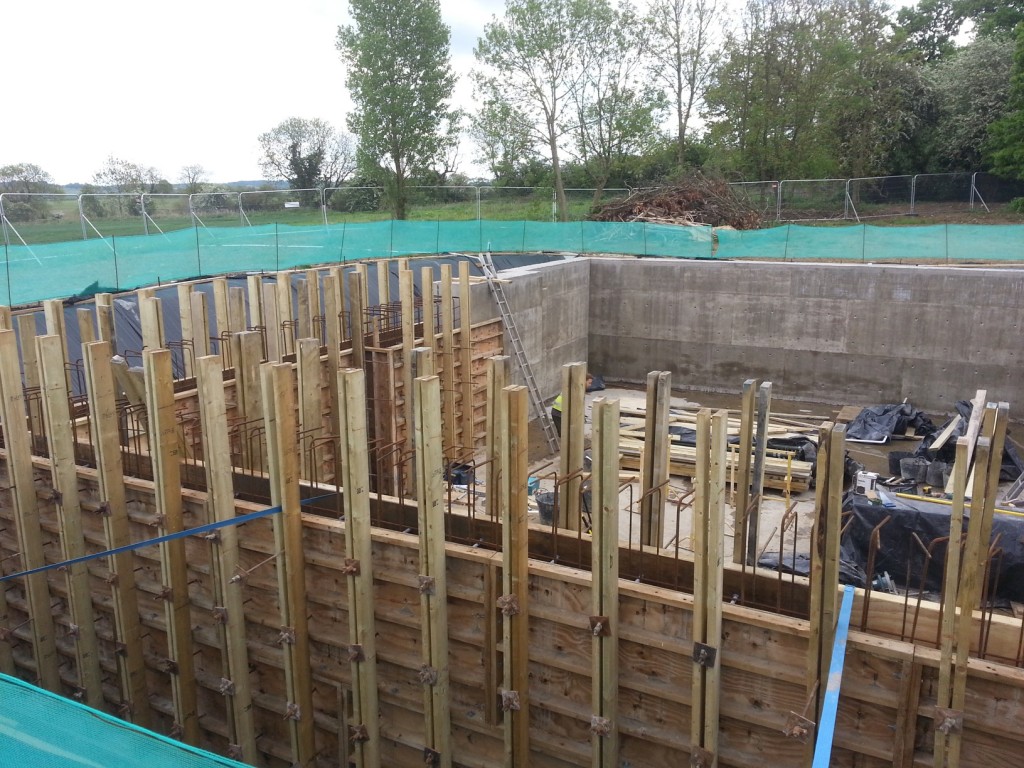

The walls were then created in two sections, using timber shutters and steel reinforcing. The walls too were cast with waterproofing concrete.

Waterproofing Method

  1. Type B – Intergral Protection. The basement was constructed using reinforced concrete with an additive, making the concrete waterproof. All external construction joints, the RC wall kicker & slab toe were treated with a waterproof cementitious waterproofing slurry, giving extra protection to the Type B system.
  2. Type C – Internal Cavity Drainage System. The internal walls and floor were lined with a cavity membrane, all linked to a sump and pumping station via perimeter channels. Two pumps and a high level alarm were installed.



All materials were supplied by Triton Systems.

Categories:
Location: Scraptoft, Leicestershire
Completed: 2016
