The main challenge on this waterproof concrete basement project was that the new basement is split over three levels and includes a swimming pool. This makes the waterproofing of the external shell very difficult.
This challenge was overcome by adapting the waterproofing system to fit the complex build. To accommodate this, the work was carried out in several stages over more than a year.

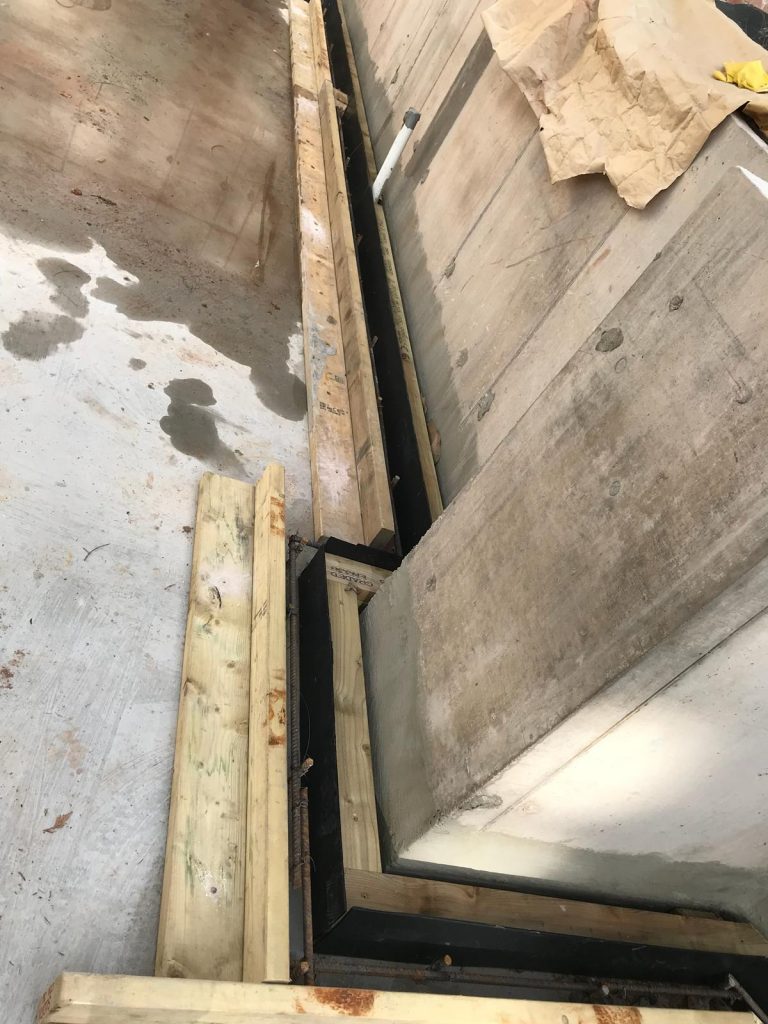

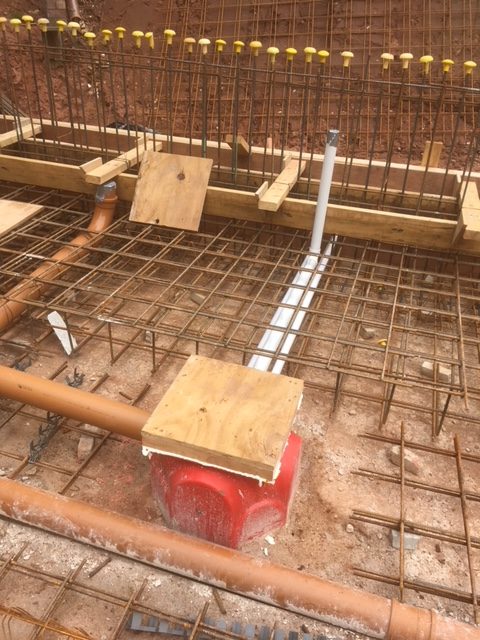

Beautiful Basements constructed this waterproof concrete basement using temporary shuttering with reinforced mass filled concrete with a waterproofing additive.

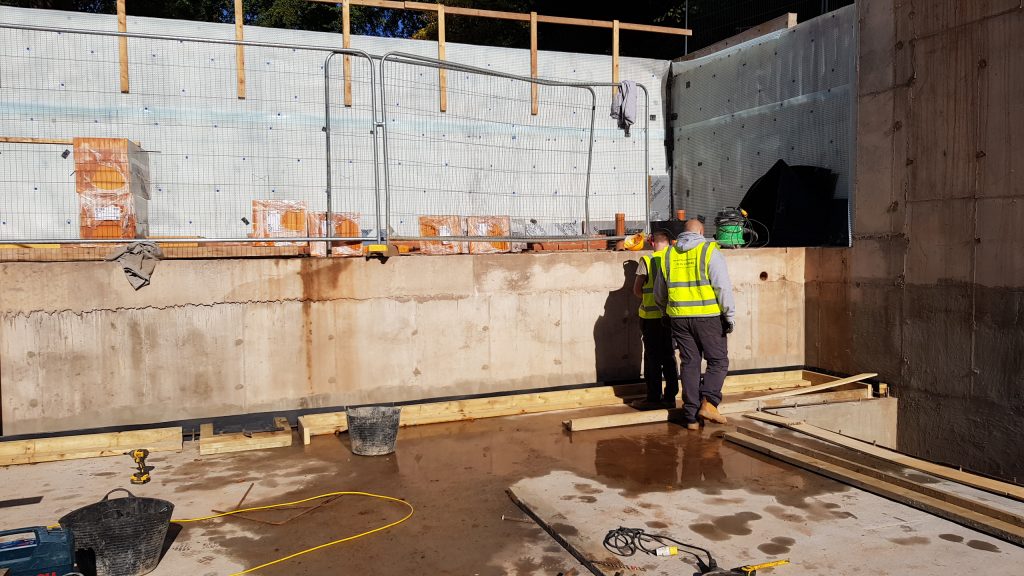

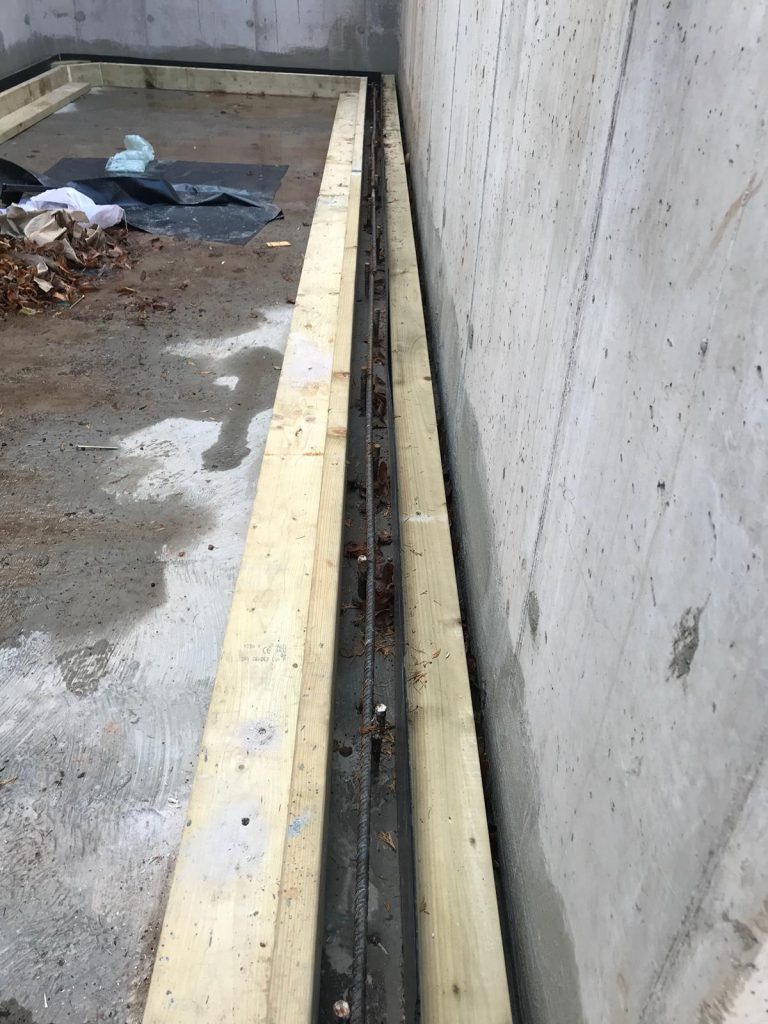

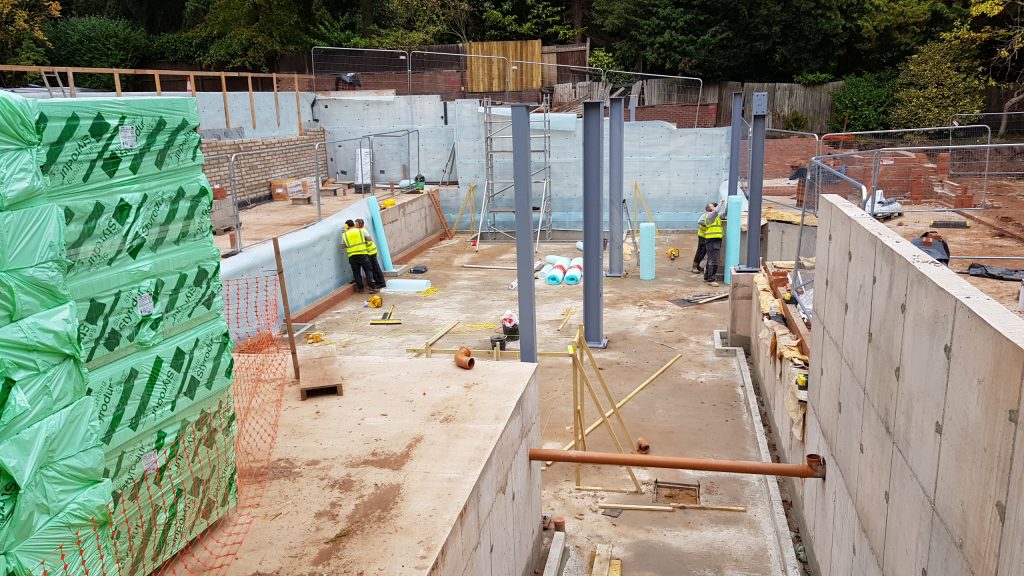

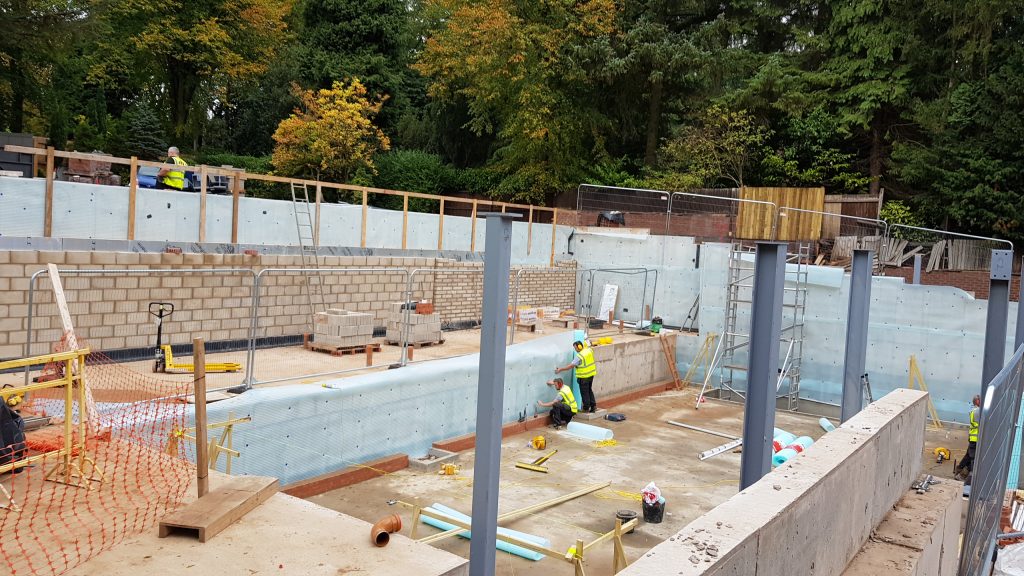

The slabs and retaining walls were constructed for each level first, with the final retaining walls built once all the levels/bulkheads had been created.
When the main build was finished, the swimming pool was built and the ground floors laid over to create a very large, multi-level, multi-use waterproof basement

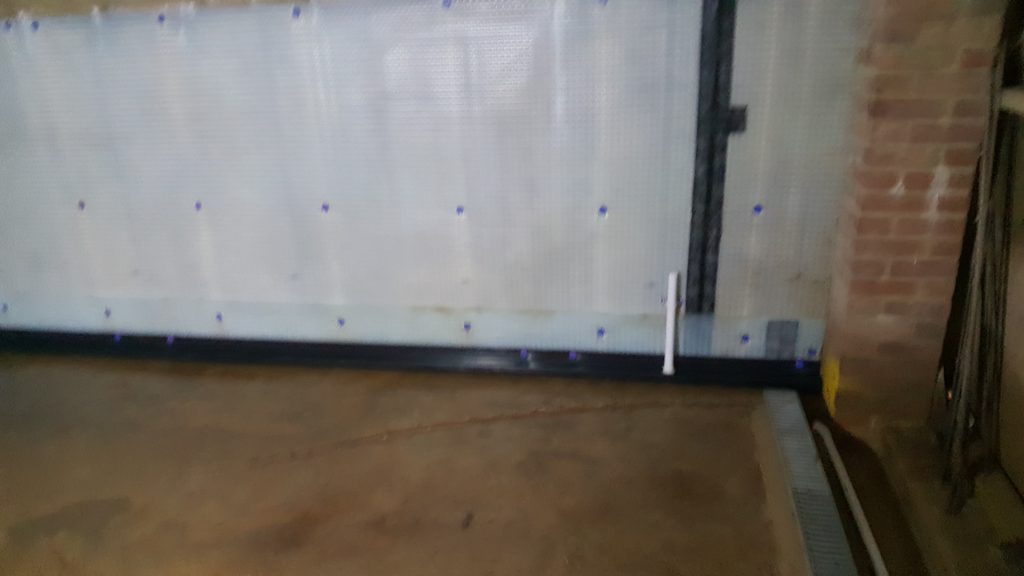

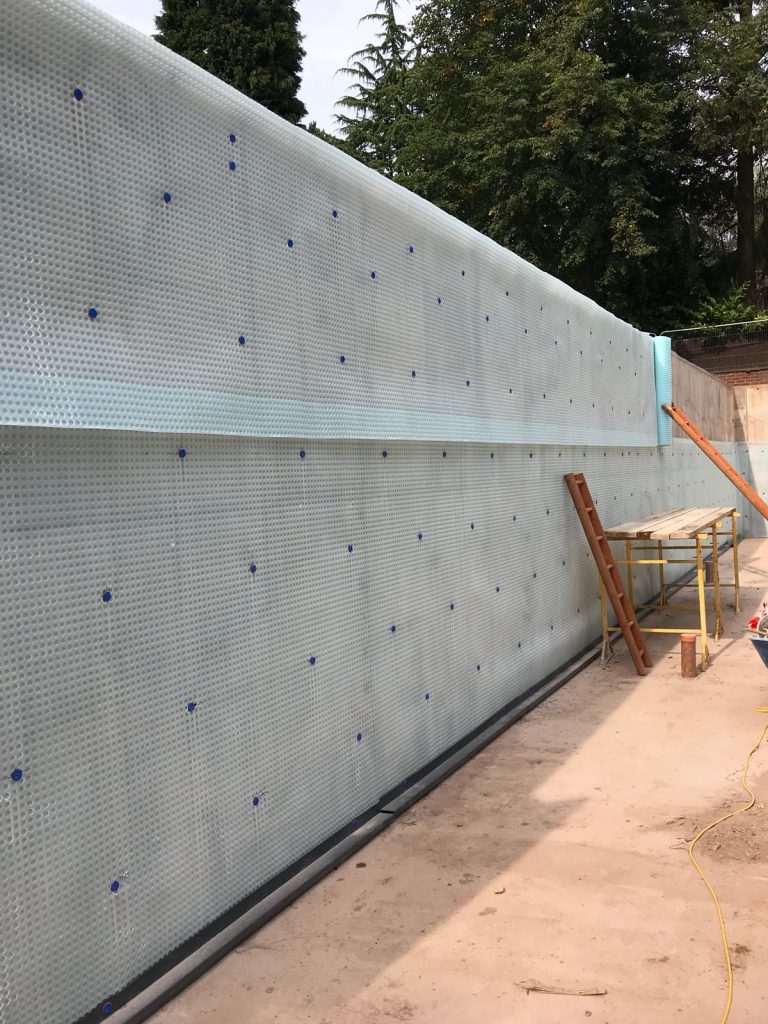

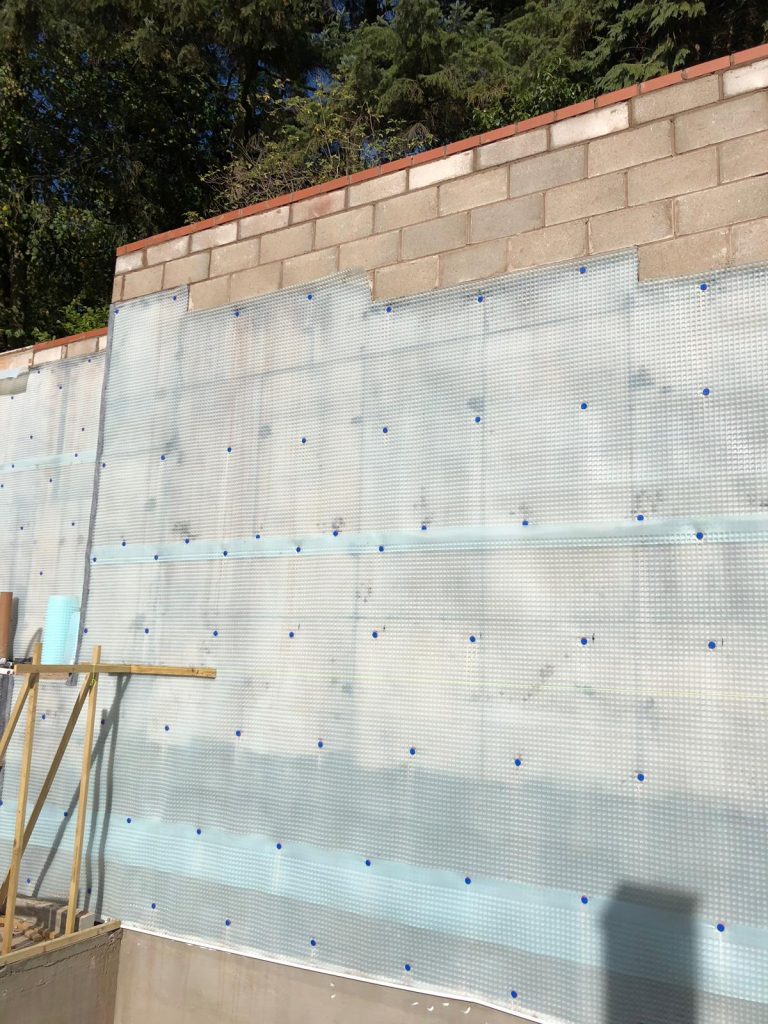

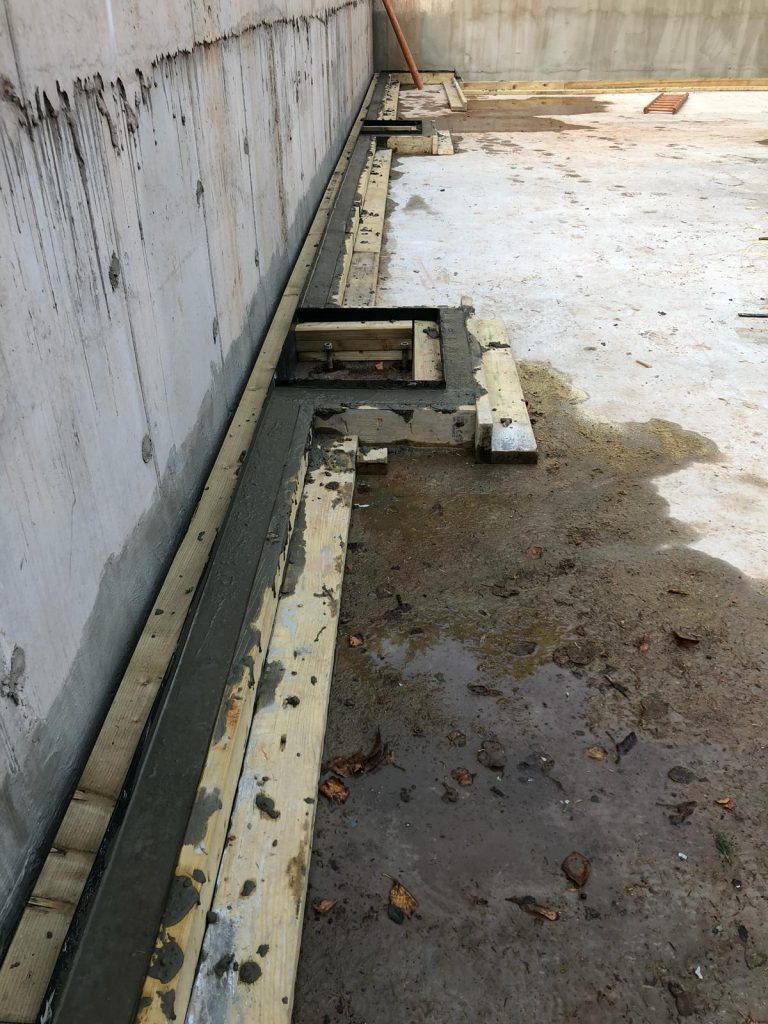

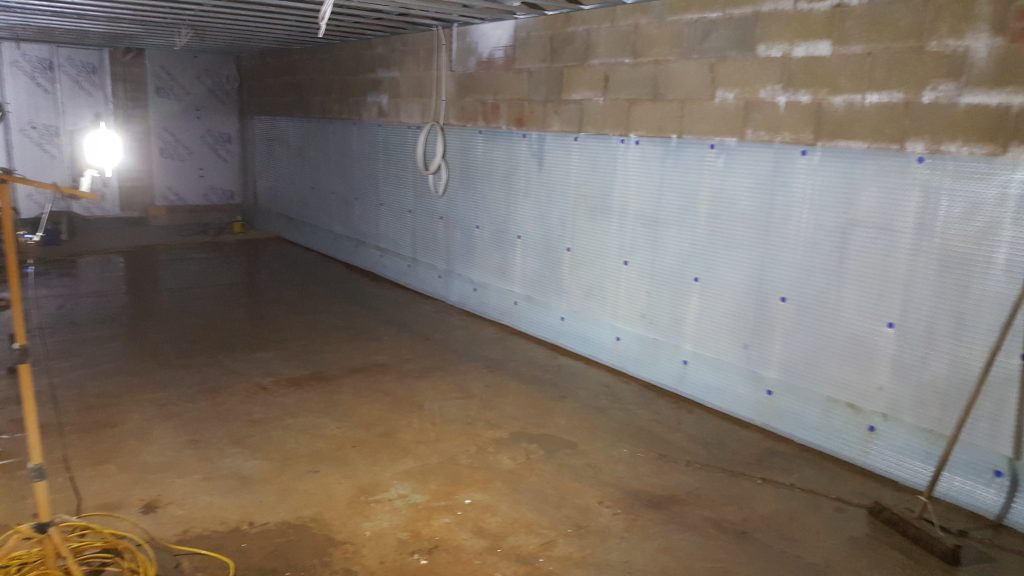

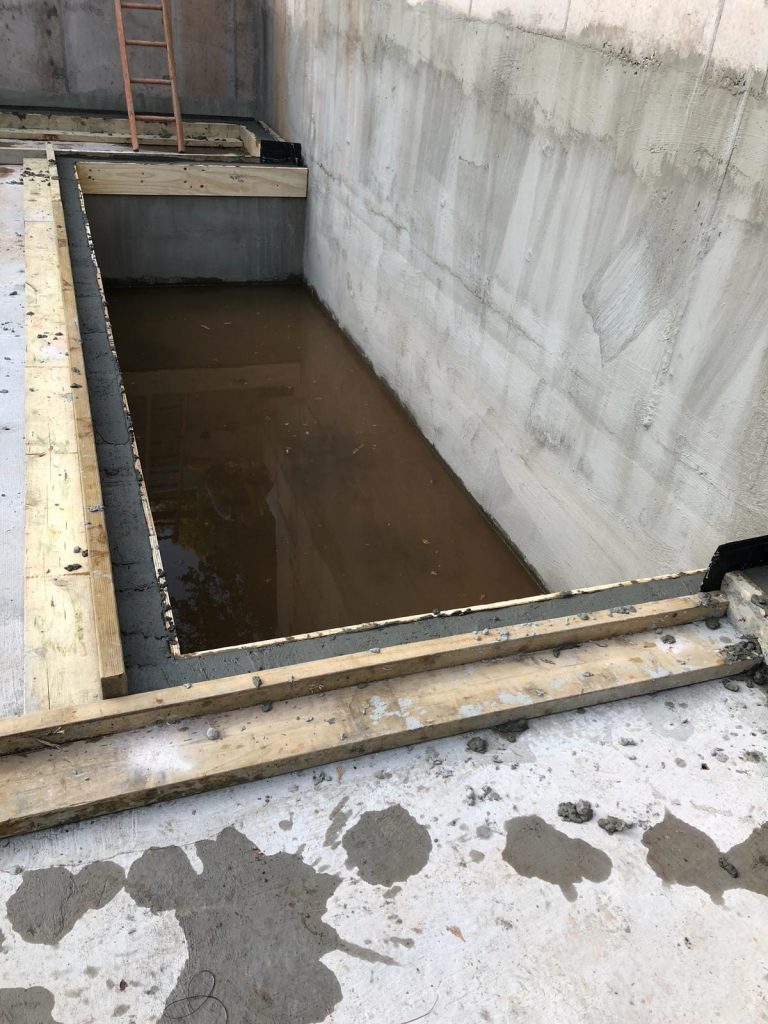

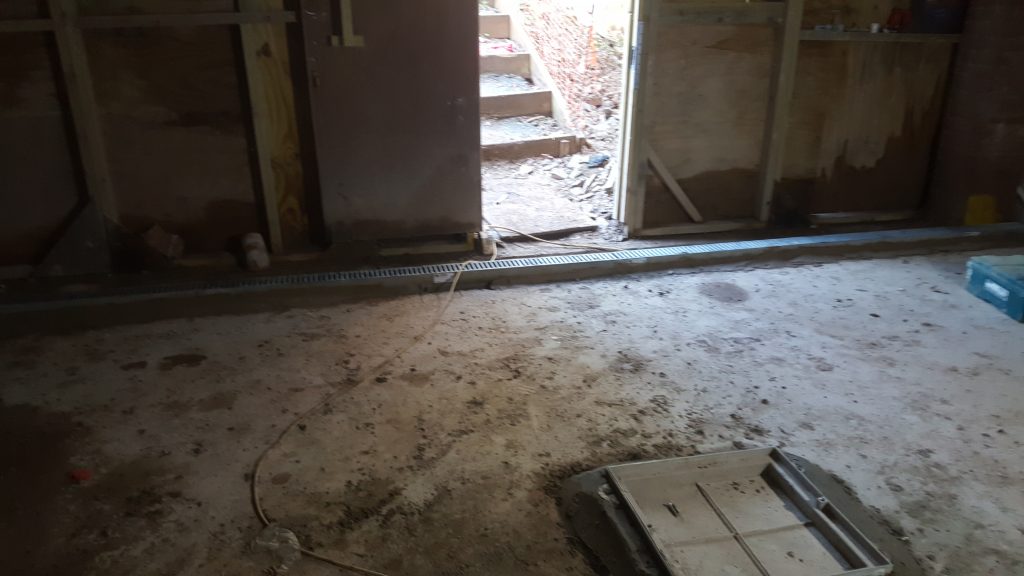

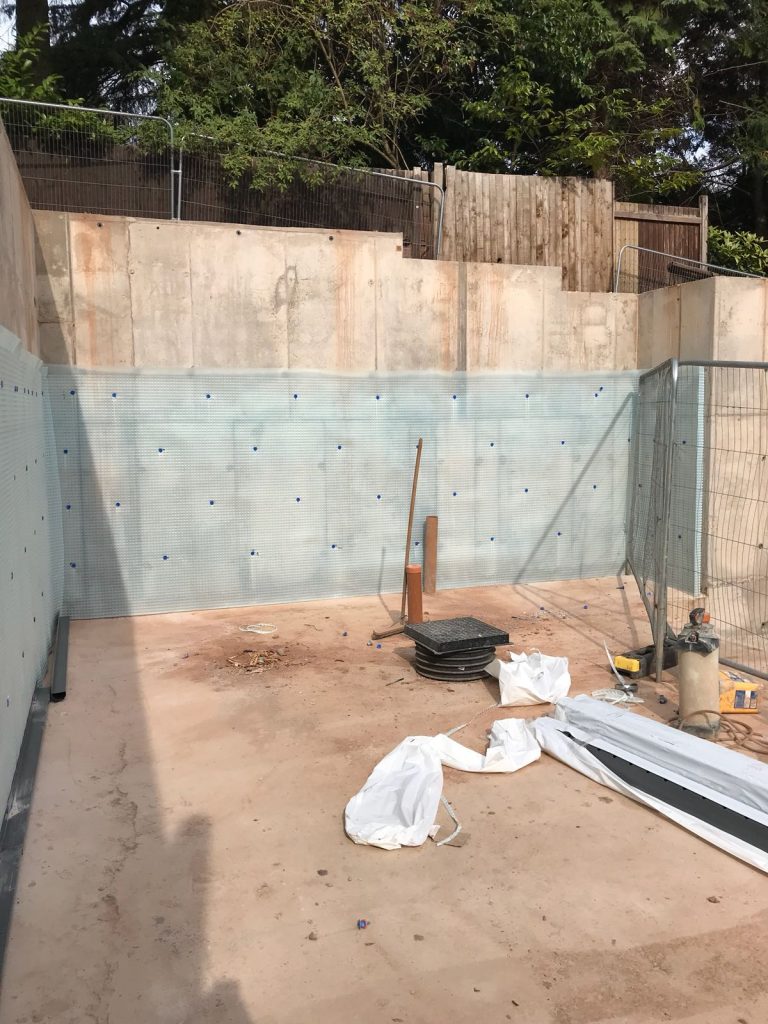

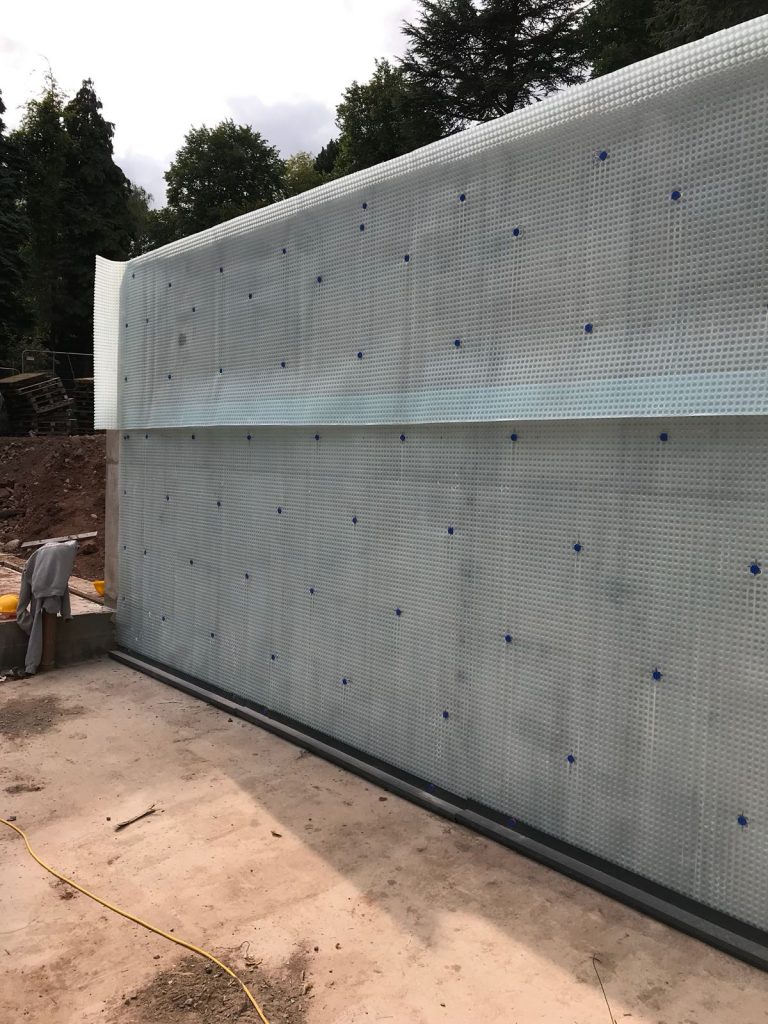

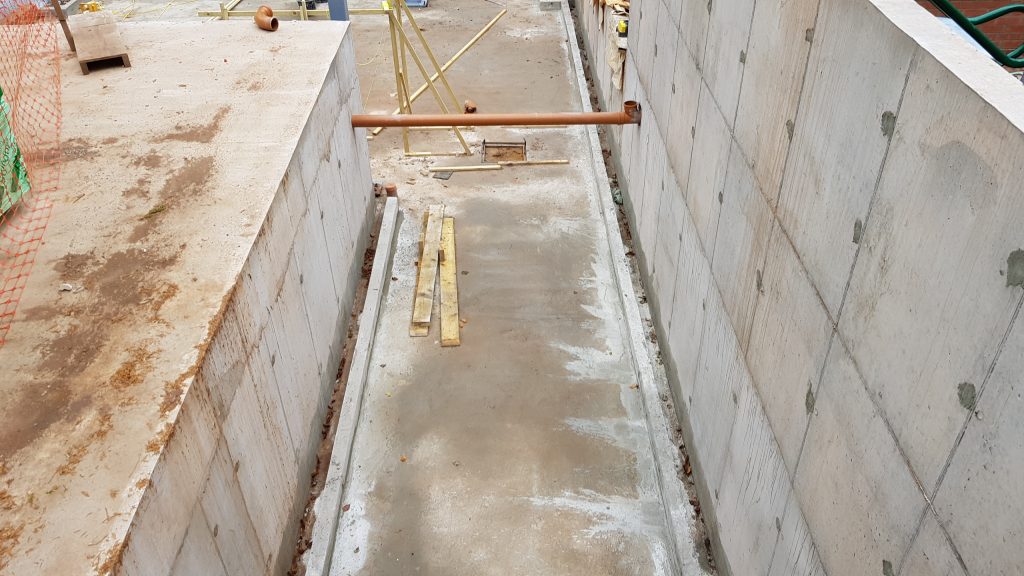

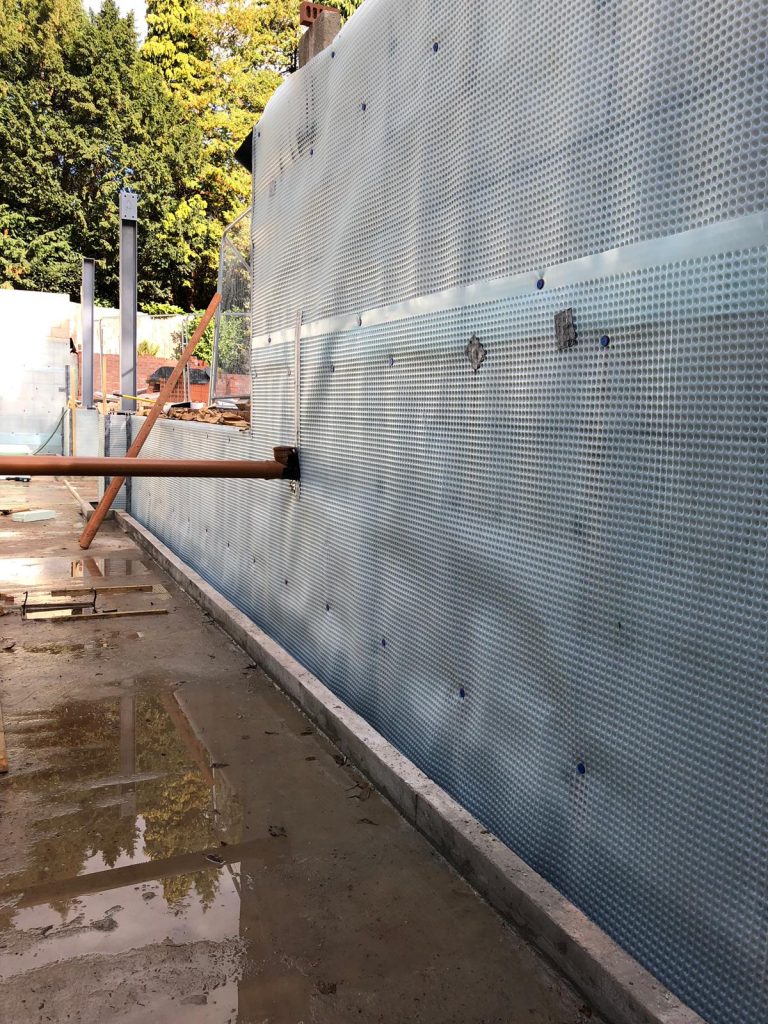

To allow for effective waterproofing of the basement, concrete channels were installed to facilitate easy movement of any water to the two sump and pumping chambers. Cavity drainage membranes were then installed over all external walls and linked to the channels. The waterproofing and drainage system are fully maintainable, with flushing points installed throughout.
Primary Waterproofing

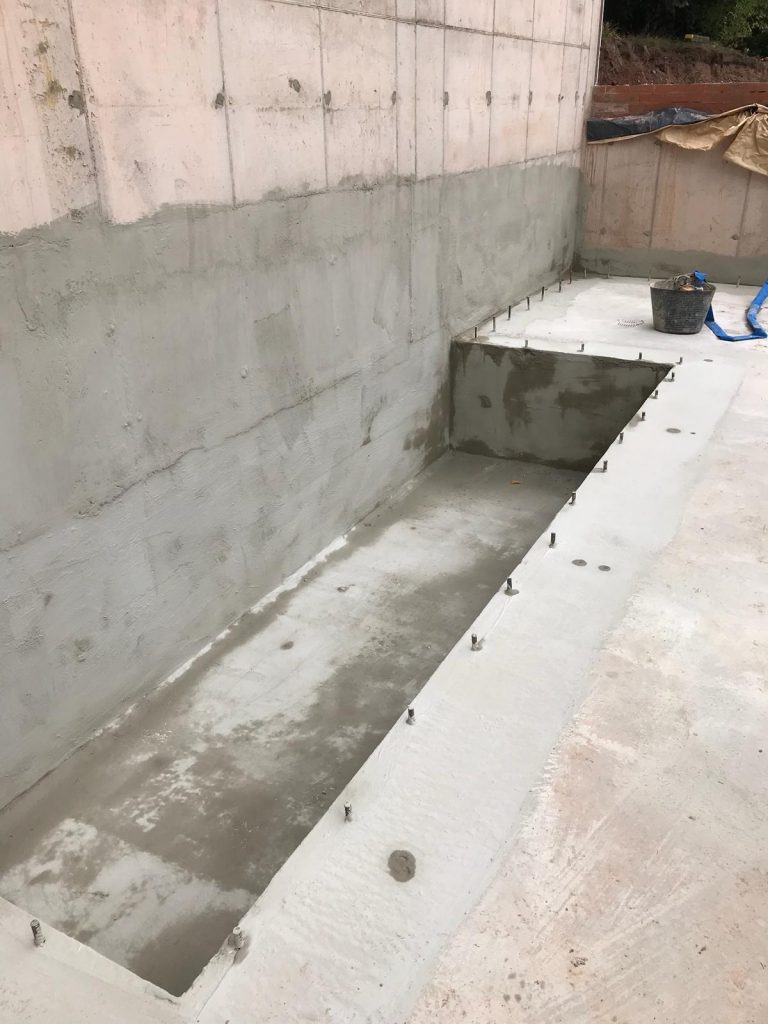

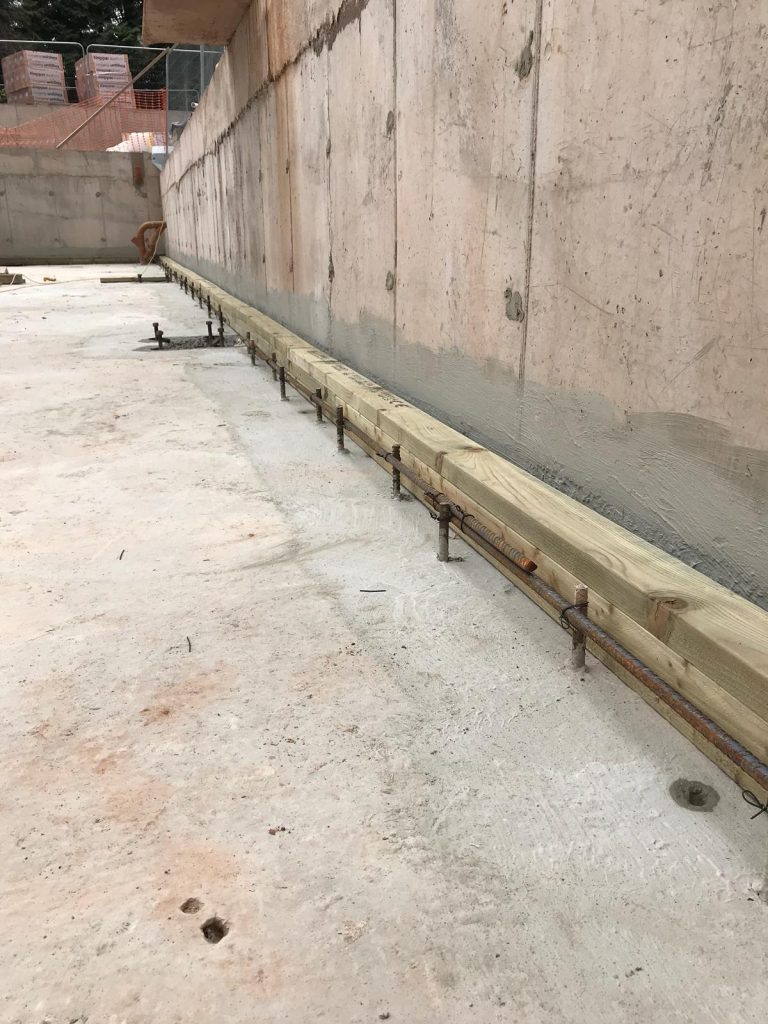

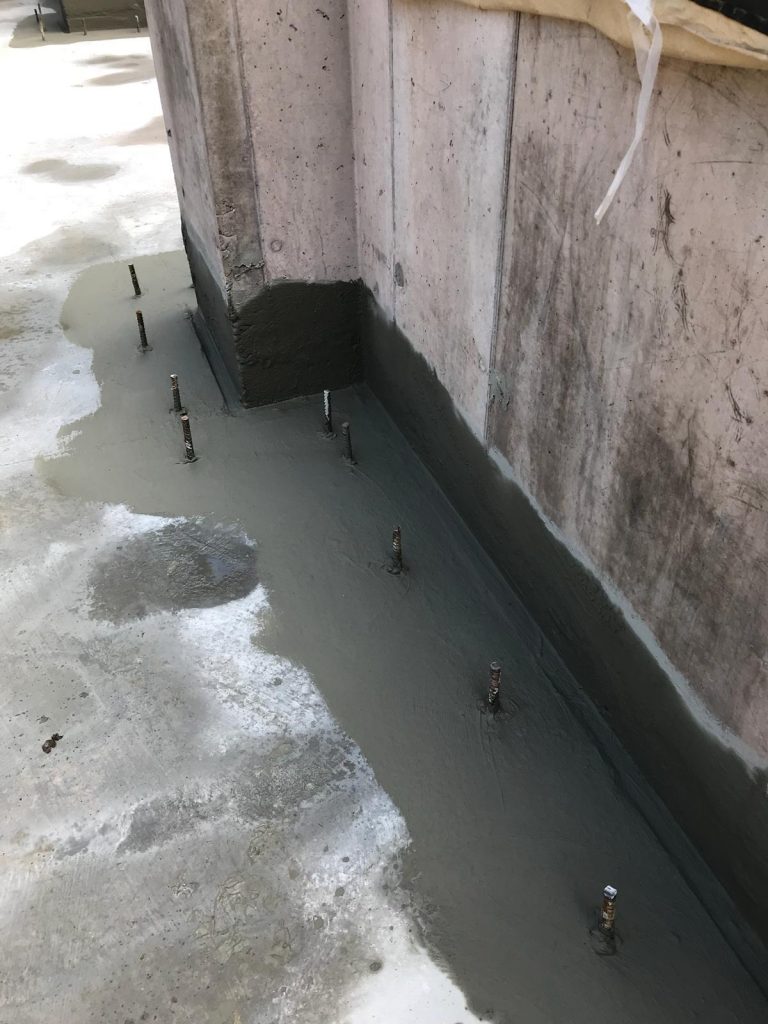

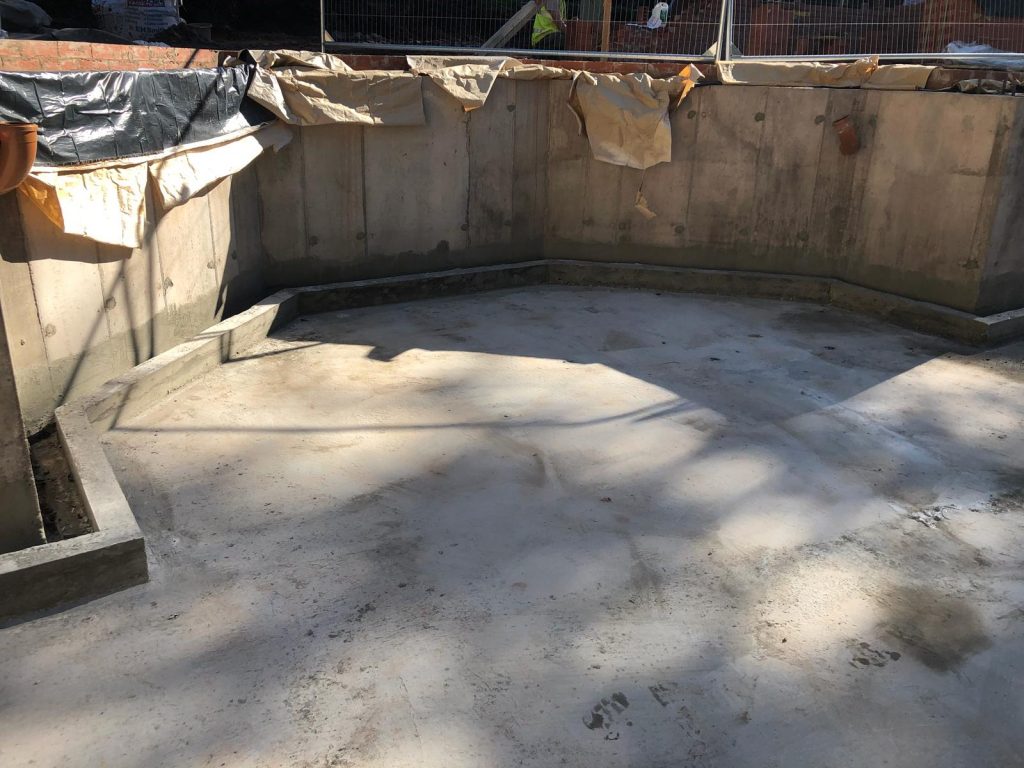

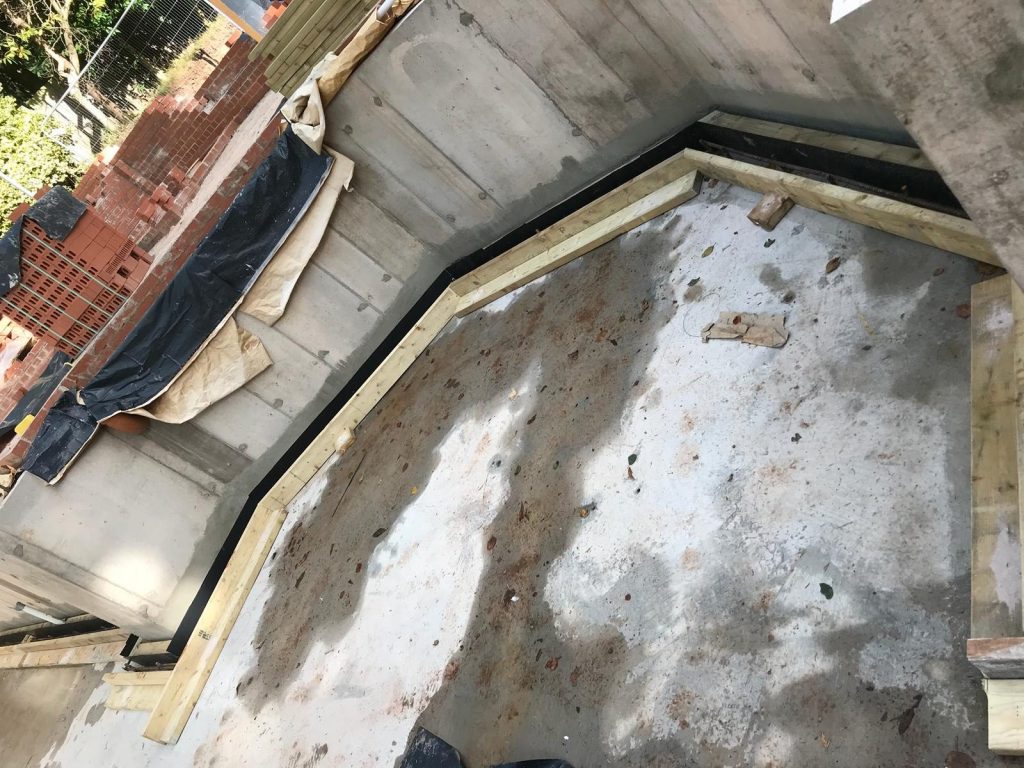

Type B – Intergral Protection. The basement was constructed using reinforced concrete with an additive, making the concrete waterproof. All external construction joints, the RC wall kicker & slab toe were treated with a waterproof cementitious waterproofing slurry, giving extra protection to the Type B system.
Secondary Waterproofing

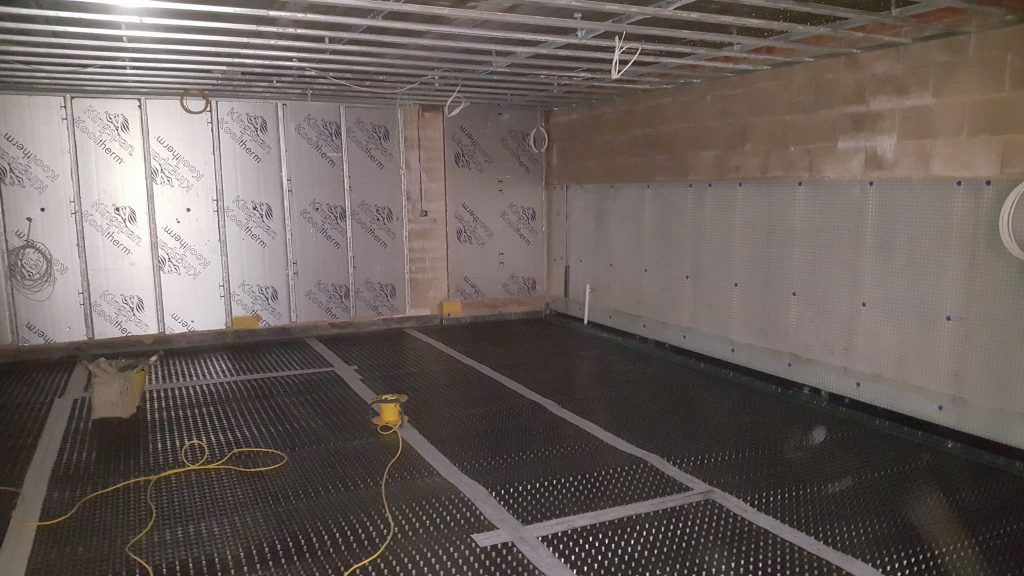

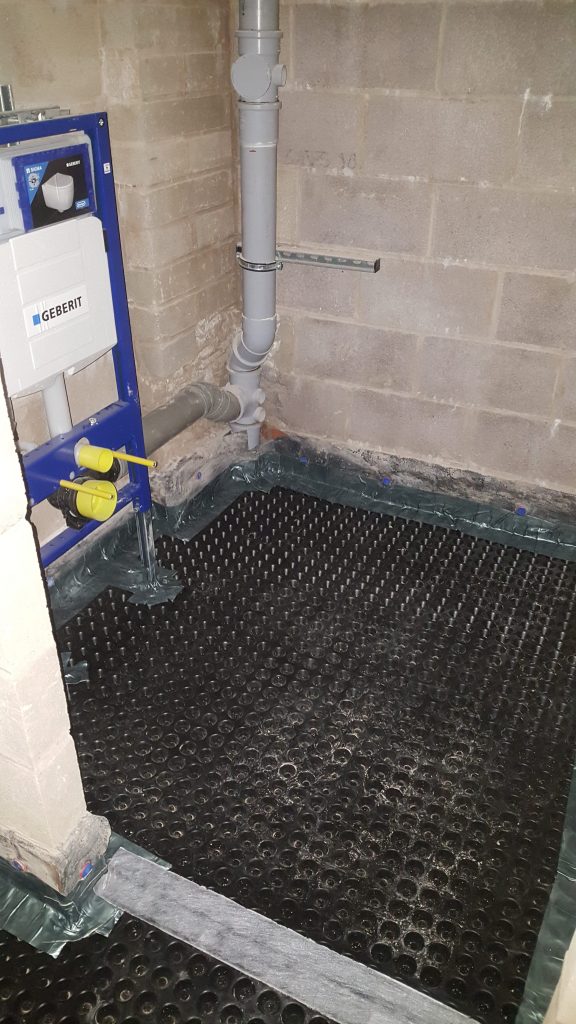

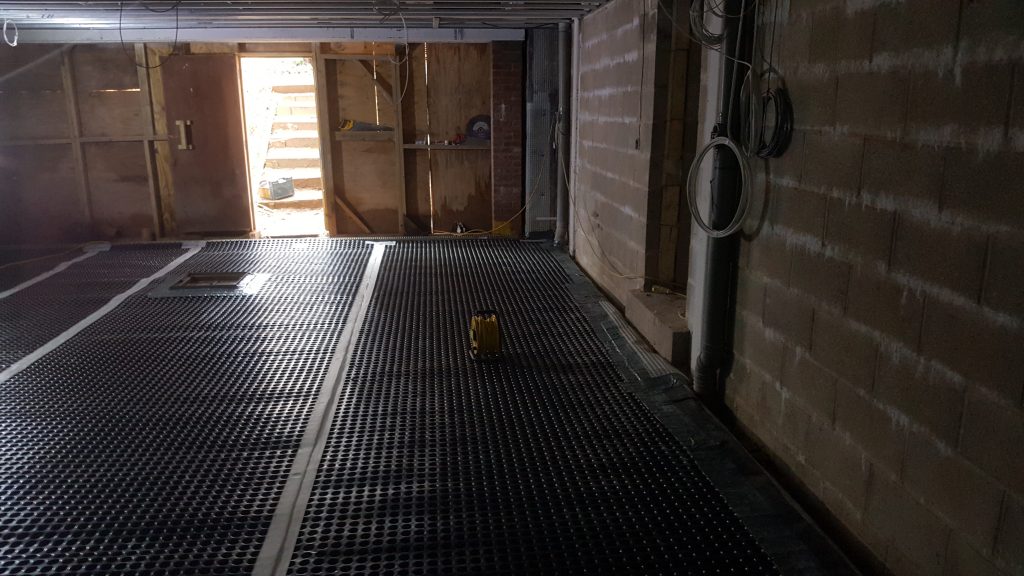

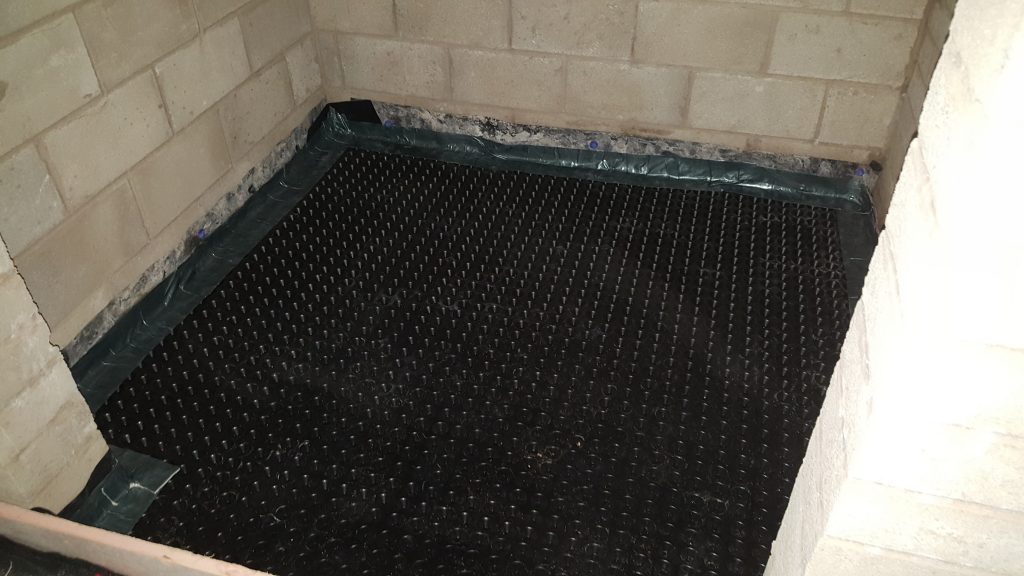

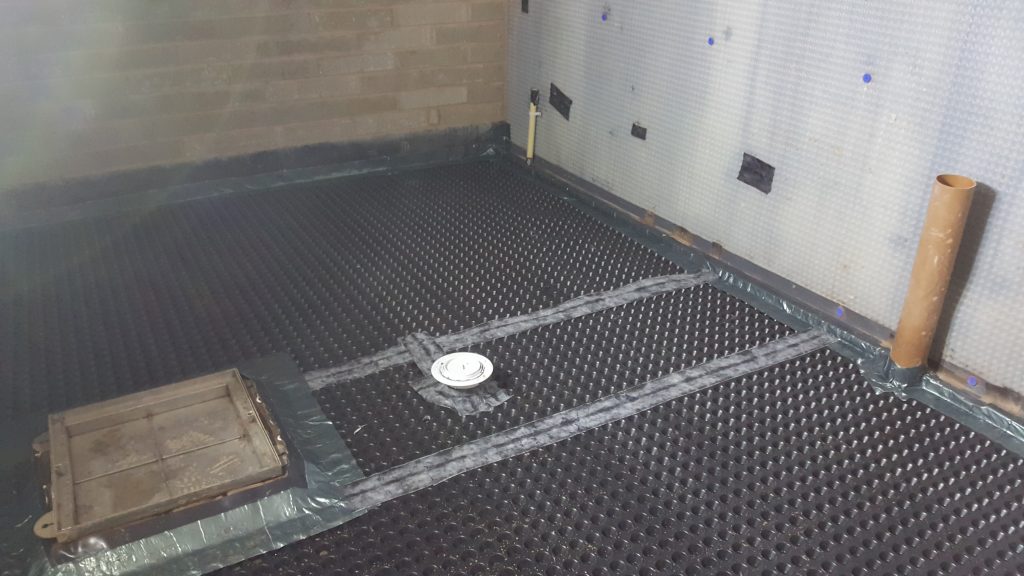

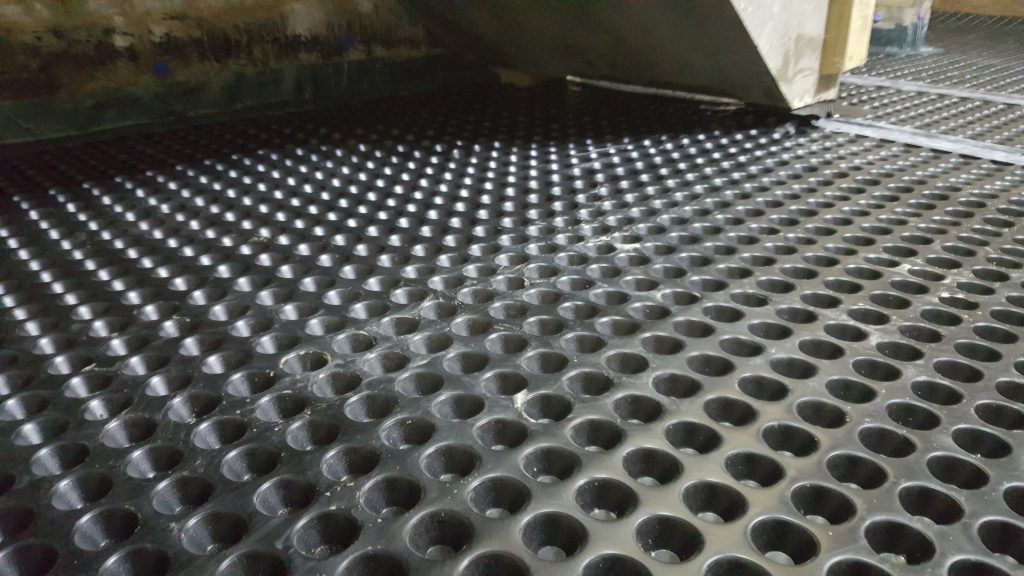

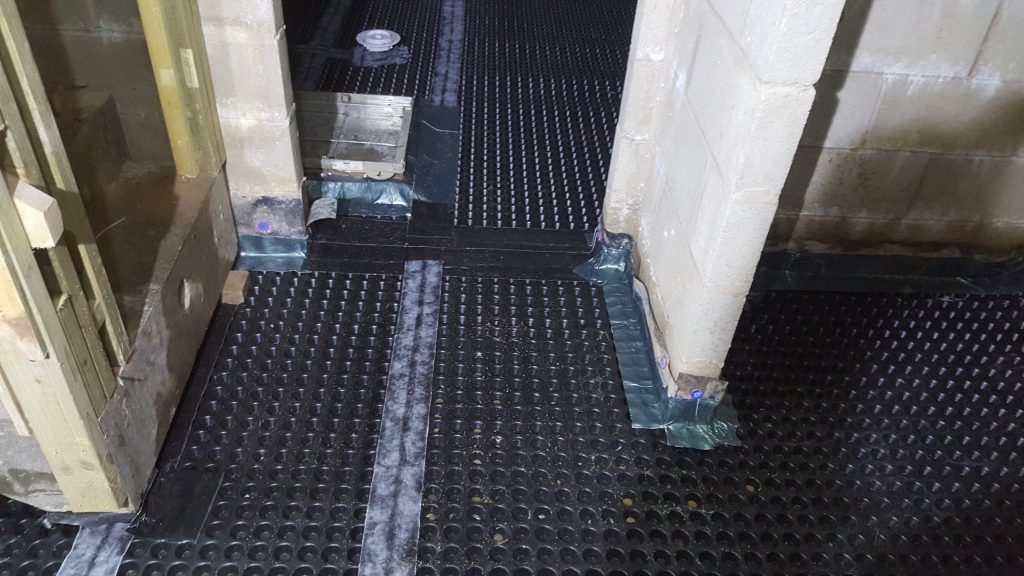

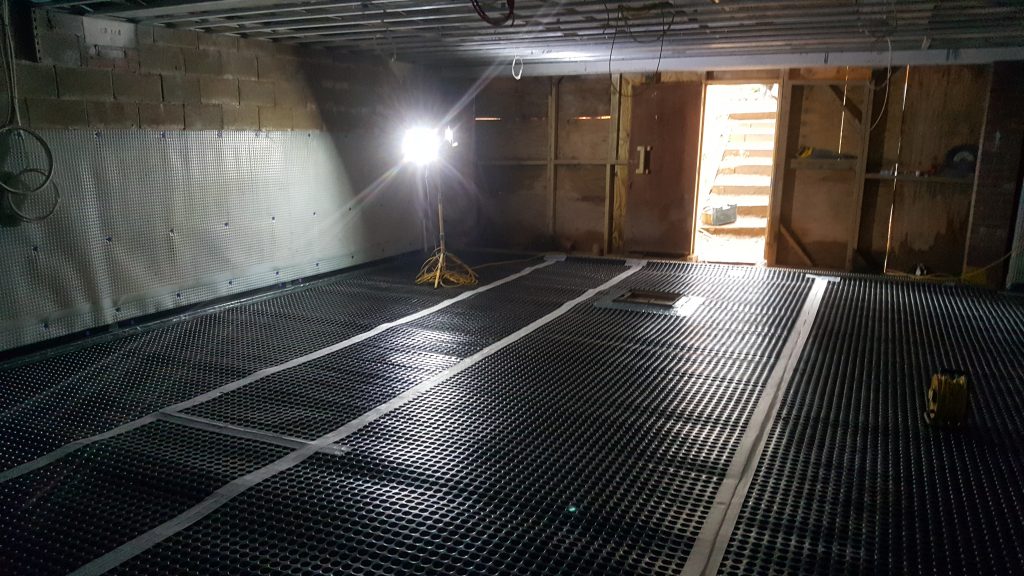

Type C – Internal Cavity Drainage System. The internal walls and floor were lined with a cavity membrane, all linked to a sump and pumping station via perimeter channels. Two pumps and a high level alarm were installed.
| Categories: | |
| Client: | Cotswold Oak |
| Location: | Sutton Coldfield |
| Surface Area: | 450 square metres |
| Completed: | 2019 |
| Architect: | Janes Architectural |
| Link: | Visit project |
